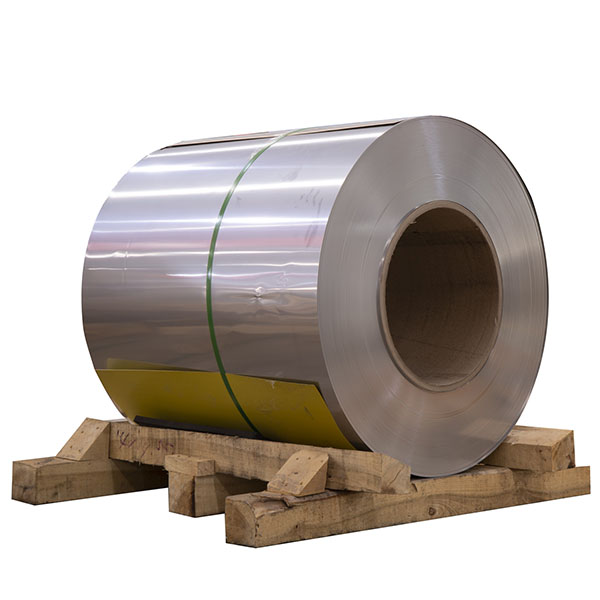

Stainless Steel Coils 1.4404 / 316L
Stainless steel coil 300 series, in addition for decorative purposes, is widely used in building materials, kitchen utensils, pipe and industrial uses, among them 316L has the best resistance to acid, heat, corrosion resistance.
Products Categories
Get A Free Quote
Stainless Steel Coils 1.4404/316L Technical
| Type | Int’l Standard | Steel Designation | Main Chemical Compositions | Mechanical Properties | |||||
| Cr | Ni | Mo | Proof Stress (N/mm2) | Tensile Strength (N/mm2) | Elong- ation | HRB | |||
| 316L | ASTM A240-96 | UNS S31600 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | ≧ 205 | ≧ 515 | ≧ 40 | ≧ 95 |
| 316L | ASME SA240-95 | UNS S31600 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | ≧ 205 | ≧ 515 | ≧ 40 | ≧ 95 |
| 316L | CNS G3163-93 | 316 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | ≧ 205 | ≧ 520 | ≧ 40 | ≧ 90 |
| 316L | JIS G4303-91 | SUS 316 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | ≧ 205 | ≧ 520 | ≧ 40 | ≧ 90 |
| 316L | EN 10088:1995 | 1.4401 | 16.00~18.00 | 10.00~13.00 | 2.00~5.00 | ≧ 205 | 520 ~ 670 | ≧ 45 | |
| 316L | DIN 17440:1996 | 1.4401 | 16.00~18.00 | 10.00~13.00 | 2.00~5.00 | ≧ 205 | 510 ~ 710 | ≧ 40 | |
Commonly used specification of Stainless Steel Coil
HOT ROLLED STAINLESS STEEL COIL
| Thickness | Width | Surface |
| 2.50mm ~ 28.0mm | 1220MM ~ Max. 2300mm | NO.1 |
COLD ROLLED STAINLESS STEEL COIL
| Thickness | Width | Hardness |
| 0.1mm ~ 6.0mm | Could be negotiable for small strips,max.1500mm | 1/4H ; 3/4H ; 1/2H ; FULL HARD |
| 0.5mm ~ 3.0mm | 1220mm ~ Max. 1540mm | |
